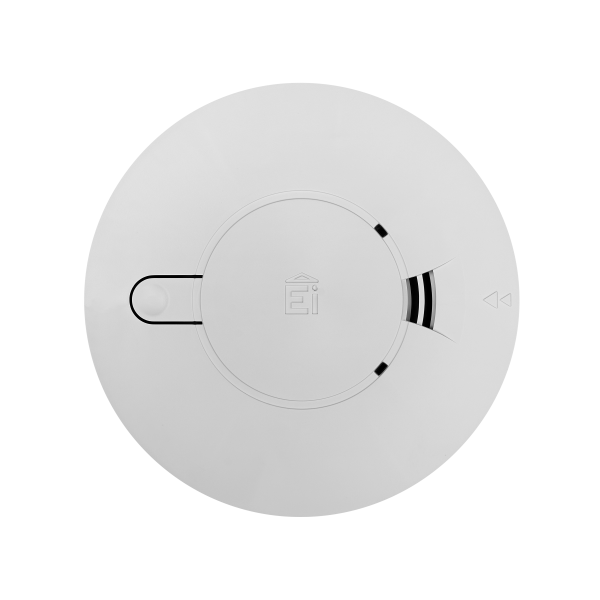

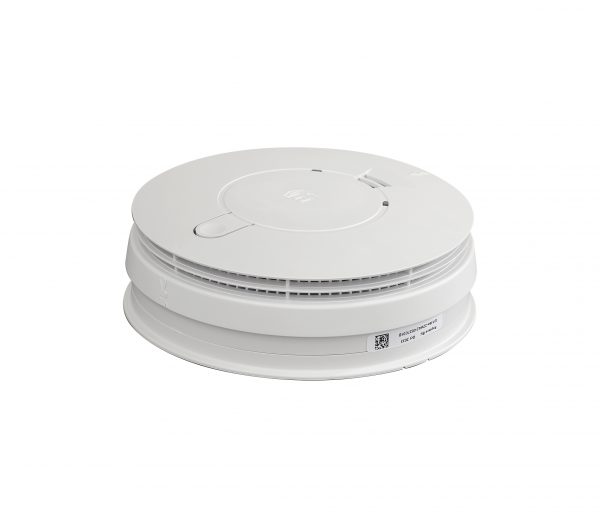

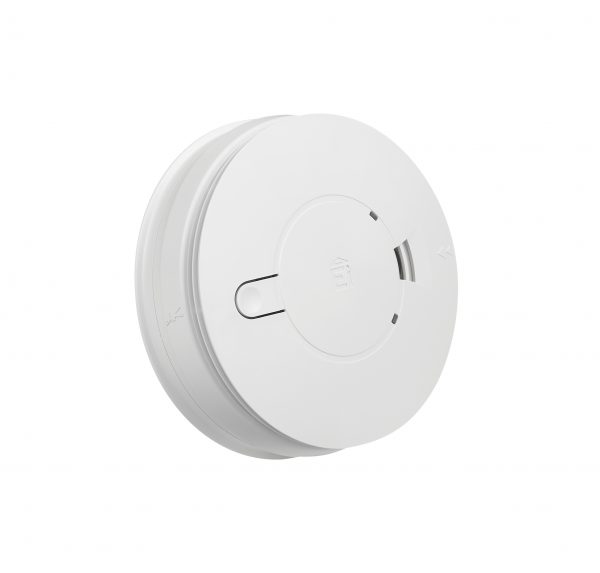

Ei146e Optical Smoke Alarm

The Ei146e Optical Smoke Alarm is a mains powered alarm, which features an easi-fit base and a large capacity, proven optical sensor chamber. It can be interlinked with other Aico alarms through either a hard wired or wireless interconnection.

  • Optical sensor – quick response to slow smouldering fires
  • Automatic dust compensation
  • Mains powered with 9V Alkaline battery back-up
  • Easi-fit base for quick and simple installation
  • Grade D2 and compliant with Scottish legislation
  • Kitemarked to BS EN14604:2005
  • 5 year guarantee

Suitable For:

Bedroom
Dining Room
Hallways
Landings
Living Room

Product Description

Power and Battery Back-up

The Ei146e Optical Smoke Alarm is a mains-powered alarm with a 9V Alkaline battery back-up and contains a large, proven optical smoke chamber.

As this alarm contains a 9V Alkaline battery back-up, this battery will need changing over the course of its 10-year life.

Alarm Siting

Different alarms sensors work best at detecting different types of fire and so should be sited in appropriate rooms throughout a property. Optical alarms are best at detecting slow, smouldering fire which are commonly caused by sofas or electrical fires.

The Ei146e is suitable for: Hallways, Landing, Livings Room, Dining Room, Bedroom

By fitting an Optical alarm in these areas, you are less likely to get nuisance alarms, especially if the alarm is located close to the Kitchen.

easi-fit base

The alarm is supplied with an easi-fit base to make it quick and simple to install.

RadioLINK Technology

As with the rest of the 140e Series alarms the Ei146e Optical alarm can be interconnected with other alarms and accessories through hard wire connection or, for less mess and disruption, by RadioLINK wireless interconnection.

Technical Specification

  • Sensor Type: Optical.
  • Supply Voltage: 230V AC, 50Hz.
  • Battery Back-up: 9V Alkaline Replaceable.
  • Indicators: Green – Power / Red – Alarm or fault
  • Power Consumption (W): 0.75
  • Sound Level: 85dB(A) at 3m.
  • Operating Temperature: -10°C to 40°C.
  • Humidity Range: 15% to 95% relative humidity.
  • Button Test: Simulates the effect of smoke and checks chamber, electronics and horn.
  • Self Test: Smoke chamber is automatically tested every 40 seconds and unit beeps (without red LED flash) if it is degraded.
  • Insect Screen: Prevents insects or debris entering chamber (1.00mm mesh size).
  • Plastic Material: UL94VO flame retardant.
  • Dimensions – Product: 148mm x 50mm
  • Dimensions – Boxed: 155mm x 155mm x 62mm
  • Weight: 345g (product only), 389g (boxed)
  • Guarantee: 5 years
  • Approvals: BS EN 14604:2005.
