Compatible with:

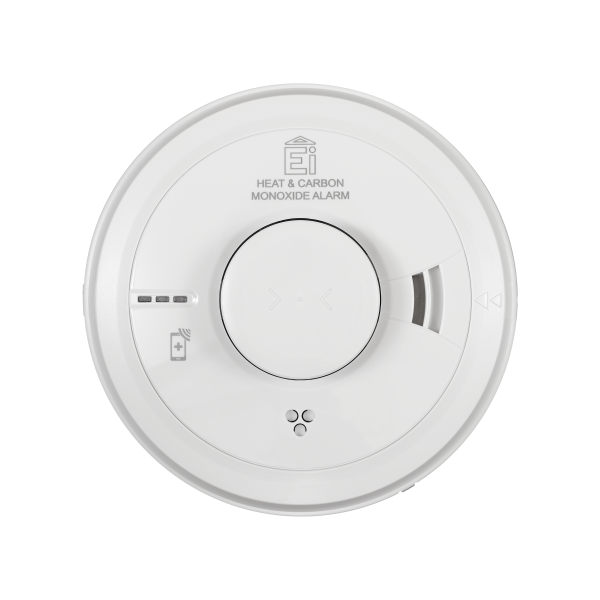

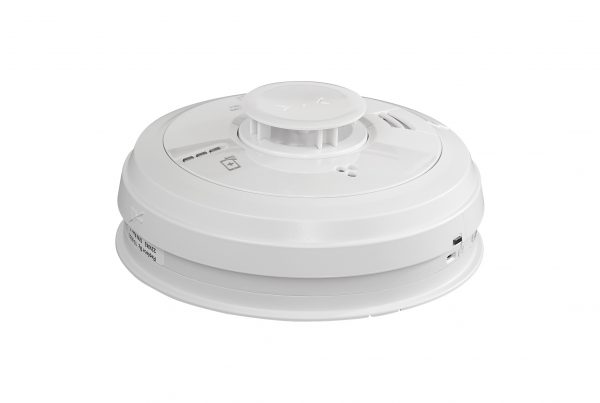

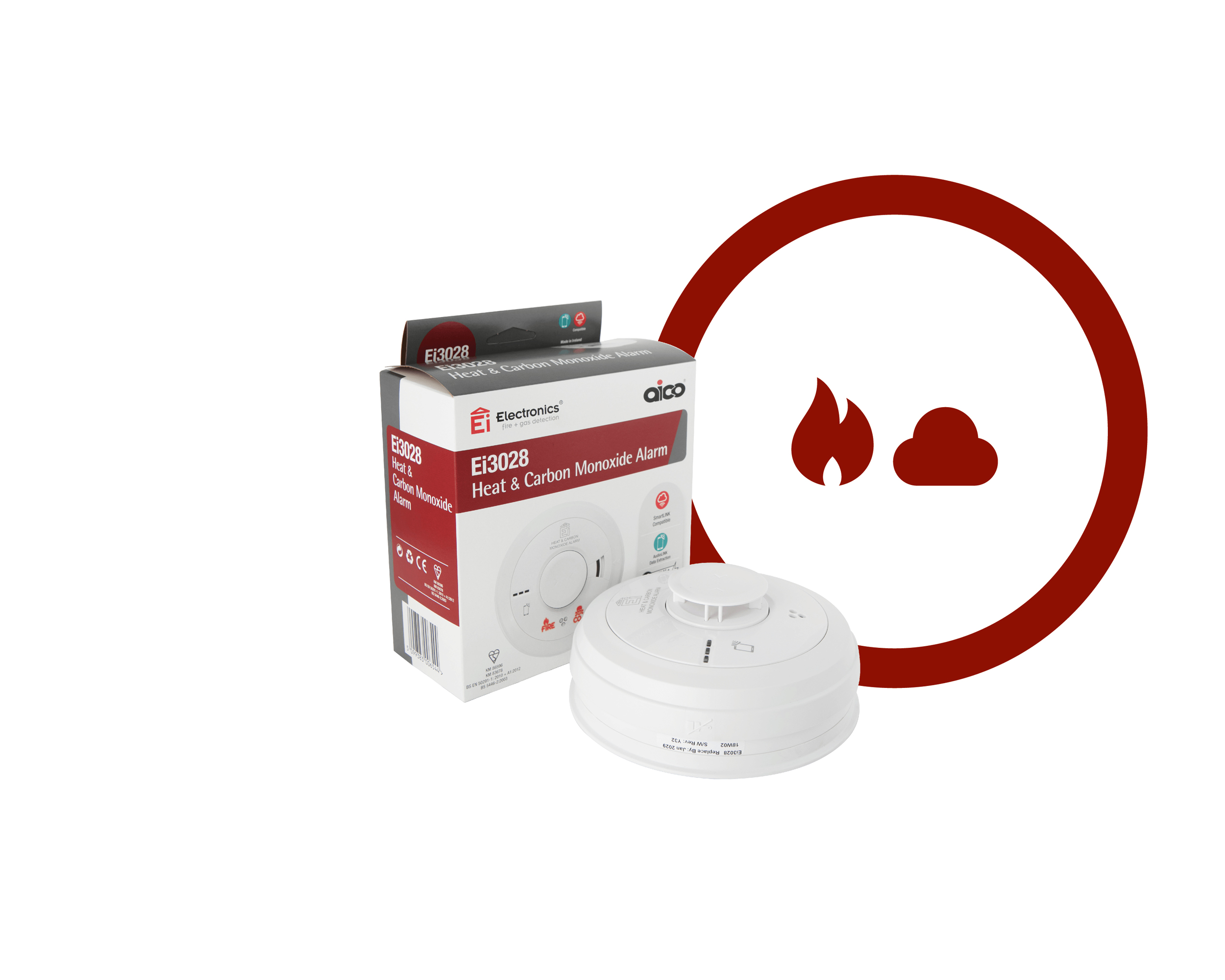

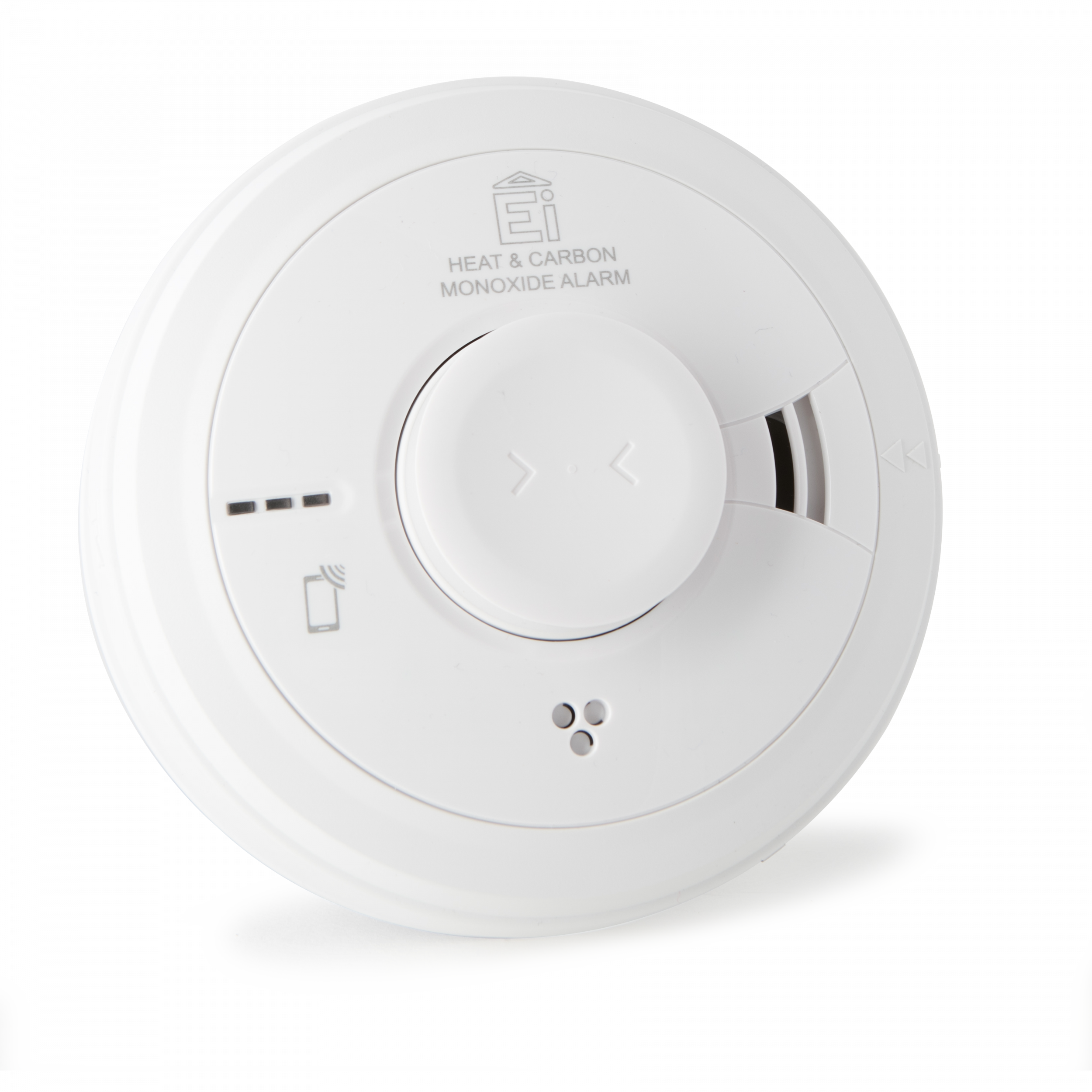

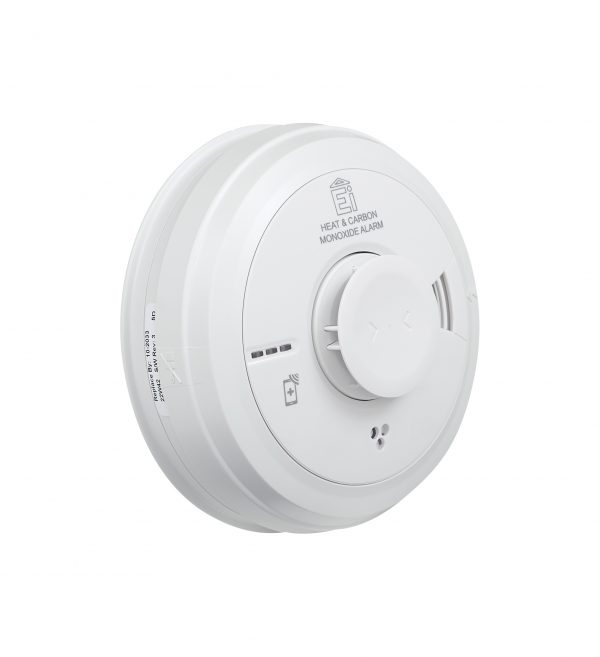

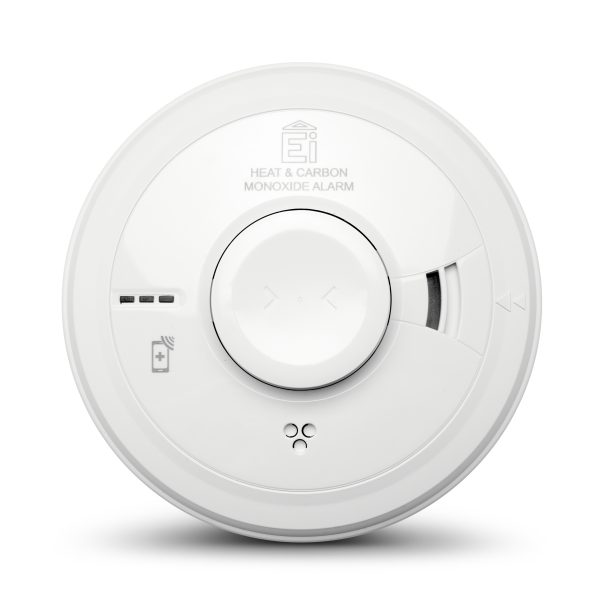

Ei3028 Multi-Sensor Heat & CO Alarm
The Ei3028 Multi-Sensor Heat & Carbon Monoxide (CO) Alarm contains our tried and tested Thermistor Heat sensor and our proven Electrochemical CO sensor.
- Contains both a Heat and Electrochemical Carbon Monoxide sensor to provide Heat and CO coverage in one alarm
- Mains powered with a 10-year rechargeable lithium cell back-up
- Add an Ei3000MRF module for wireless interconnection and data extraction
- Compatible with other Aico mains powered units
- Built-in AudioLINK+ data extraction technology
- Flashing Fire and CO indicators on alarm head
- Grade D1 and compliant with Scottish legislation
- Supplied with an easi-fit base
- 10 Year Guarantee
*When purchased as part of the eco-fit range, this product does not include easi-fit bases, screw packs or dust covers.
Suitable For:
Ei3028 Multi-Sensor Heat & CO Alarm
Ei3028
The Multi-Sensor Heat & Carbon Monoxide Alarm
The alarm contains our tried and tested thermistor heat sensor and our proven electrochemical Carbon Monoxide (CO) sensor, providing protection from both Fire and CO.
- Install one alarm instead of two for combined Fire & CO coverage
- Contains two proven, reliable sensors
- Flashing Fire and CO indicators
Heat and Carbon Monoxide detection from a single device.
Market leaders in product innovation and protection.
Product Description
There are a number of Fire & Carbon Monoxide (CO) risks within a typical home. For example, cookers in kitchens pose a fire risk, being responsible for 50% of accidental fires in dwellings*. In addition, many of these areas also contain gas fuelled appliances such as boilers which present an additional risk from CO – a poisonous gas that you can’t see, smell or taste.
It’s vital to protect against both risks. Previously the answer to this would have been to fit two alarms, a Heat Alarm and a CO Alarm, however this protection can now easily be achieved by using the new Ei3028 Multi-Sensor which detects both Fire and Carbon Monoxide in a single alarm.
*Fire Statistics: England April 2015 to March 2016
- Install one alarm instead of two for combined Fire & CO coverage
- Contains two proven, reliable sensors
- Flashing Fire and CO indicators
- Easy install – simply slide the new alarm onto an existing easi-fit base
- Compatible with SmartLINK Wireless Interconnection using our award winning RF technology for simple system set-up, house-coding and system expansion
- Real time local data extraction using AudioLINK+ or whole system remote data monitoring and extraction with SmartLINK
- Fully backwards compatible with existing Aico systems
The Ei3028 Multi-Sensor Heat & CO Alarm is SmartLINK compatible. Simply plug in an Ei3000MRF module for wireless interconnection, data extraction and real-time notifications of alarm activations and events via the SmartLINK Gateway and Portal.
The Multi-Sensor alarm contains AudioLINK+ technology, which allows you to extract real time data from the alarm using its sounder directly to a smartphone or tablet via an App. A simple to read report is generated displaying details such as activation dates, sensor status and alarm life, that can be emailed to help form part of property records.
The Ei3028 Multi-Sensor Heat & CO Alarm is SmartLINK compatible. Simply plug in an Ei3000MRF module for wireless interconnection, data extraction and real-time notifications of alarm activations and events via the SmartLINK Gateway and Portal.
The Ei3028 Multi-Sensor Heat & CO Alarm is fully compatible with all other Aico alarms and accessories whether a system needs upgrading or an existing system needs expanding; and works with either hard-wired, RadioLINK or hybrid interconnecting systems.
Technical Specification
- Sensor Type: Thermistor & Electrochemical CO
- Supply Voltage: 230V AC, 50Hz
- Power Consumption: 0.25W (standby)
- Battery Back-up: Rechargeable lithium cells
- Sound Level: 85dB(A) at 3m
- Button Test: Checks sensors, electronics, LED displays and sounder
- Silence Function: Silences alarm for 10 minutes if alarm is triggered by heat or for 4 minutes in case of CO event
- Silence Function: Silences fault beeps for 12 hours
- AudioLINK+: Enabled
- SmartLINK: Compatible via the Ei3000MRF Module
- Indicator LEDs: Green – power. Red – pre-alarm (CO only)/ alarm/ silence mode/ memory or battery event. Yellow – fault event
- Memory: Records last alarm event
- Fixing: easi-fit base (supplied)
- Operating Temperature: -10°C to 35°C
- Humidity Range: 15% to 95% relative humidity
- Plastic Material: UL 94 V0 flame retardant
- Dimensions – Product: 150mm x 66mm
- Dimensions – Boxed: 155mm x 155mm x 70mm
- Weight: 318g (product only), 384g (boxed)
- Guarantee: 10 years
- Approvals: BS EN 50291-1:2018 / KM86596 / KM83678
Related Products
The 3000 Series detects both Fire and Carbon Monoxide, allowing you to specify a whole property from one range.
