Compatible with:

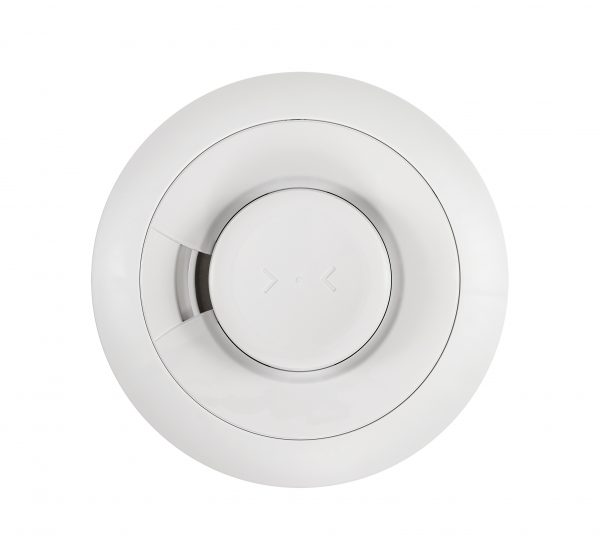

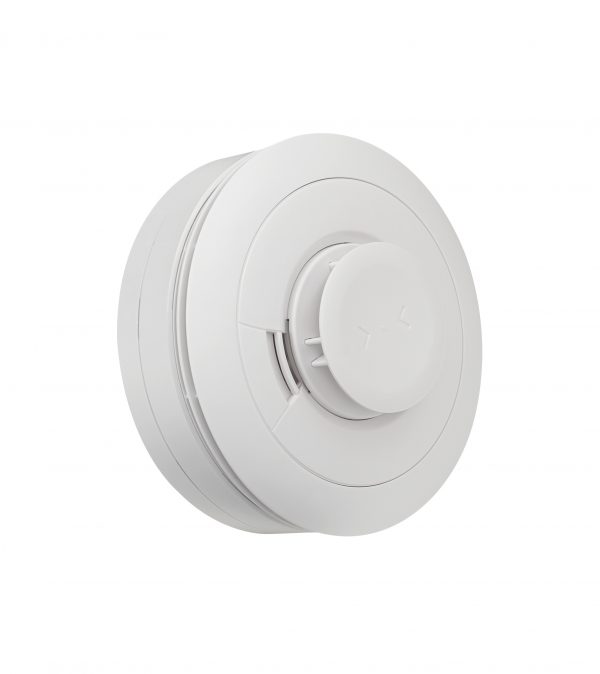

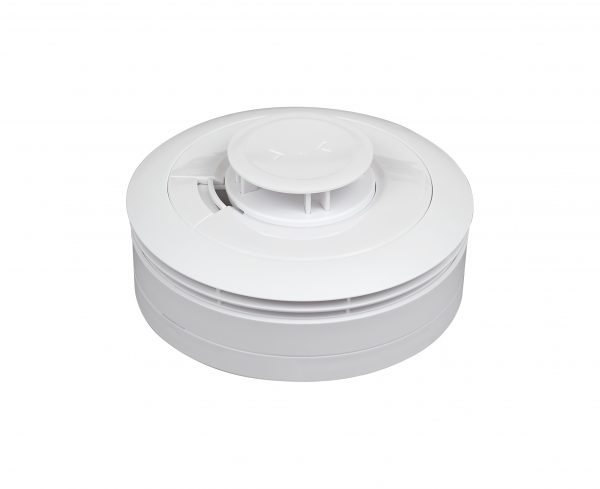

Ei660iRF RadioLINK+ Multi-Sensor Fire Alarm
The Ei660iRF is a battery-powered Multi-Sensor Fire Alarm which can wirelessly interconnect with any other RadioLINK and SmartLINK products.
The Multi-Sensor Fire Alarm contains two proven, reliable sensors – Optical and Heat. The intelligent alarm software actively monitors both sensors, allowing them to work together and provide total fire coverage.
- Powered by a sealed 10-year lithium battery
- Built-in RadioLINK+ and AudioLINK+ technology
- Built-in dust compensation technology
- Twist on base with an anti-tamper locking option
- Grade F1 and compliant with Scottish legislation
- Kitemarked to BS EN 14604:2005 and BS 5446-2:2003
- Easy to use, large test button
Suitable For:
Multi-Sensor Smoke and Heat Alarm powered by 10-year lithium battery.
Market leaders in product innovation and protection.
Product Description
The Ei660iRF Multi Sensor Fire Alarm uses Optical and Heat sensors to detect all fire types with an increased resistance to false alarms. Its ability to respond quickly to both fast flaming and smouldering fires, simplifies alarm choice for the designated rooms/areas, including the hallway, landing, living room, dining room, bedroom and loft spaces
This second iteration of the award-winning AudioLINK technology makes it simple to get real-time data from the Ei660iRF Multi-Sensor Fire Alarm via the AudioLINK+ app. The App generates a simple to read colour-coded report giving information on a range of alarm data, such as alarm activations, sensor status and record of testing.
The alarm has a unique self-monitoring dust compensation mechanism incorporated into its software, which will allow the alarm to tolerate more dust contamination than a conventional alarm. The optical sensor chamber continually self-monitors minute changes in dust levels. If the dust accumulates to a certain level, the alarm automatically recalibrates the alarm trigger point.
The Ei660iRF is a battery-powered Multi-Sensor Fire Alarm that contains a sealed in, tamper-proof lithium battery that will last for the full 10 year life of the alarm.
Technical Specification
- Sensor Type: Photoelectric (Optical Chamber) & Thermistor (Class A1 Detection)
- Battery: 3v Lithium Battery (non-replaceable)
- Product Life: 10 years
- RF Frequency: 868Mhz band (1% duty cycle)
- RF Power: +10dBm
- Technologies: RadioLINK+, AudioLINK+ & Dust Compensation
- Sound Level: 85Db at 3 meters
- Visual Indicators: Power Up – Red & Amber LED / Standby – no coloured LEDs / Testing, Activation & Memory – Red LED / Faults – Amber LED / RF Transmission – Blue LED
- Operating Temperature: -10°C to 40°C
- Humidity Range: 15% to 95% Relative Humidity
- Storage: 0°C to 35°C
- Weights: 0.222 (product) / 0.264 (packaged)
- Dimensions: 115mm x 55mm (product) / 121mm x 63mm x 148mm (packaged)
- Warranty: 5-year (limited) warranty
